Jamb/Wall Thickeness
Below is a listing of all products under the category Jamb/Wall Thickness:
Prev 1 Next
|
| SHADOW LINE JAMBS |
|
| Product Code: |
SHADOW LINE JAMBS |
| Lead Time: |
|
HERE IS AN EXAMPLE OF A SHADOWLINE FINISH.
NOTE:
STANDARD 3/4 1 1/4 JAMB CAN BE USED
BACKS OF JAMBS SHOULD BE MACHINED FLAT
SLOT MAY OR MAY NOT BE REQUESTED FOR THE Z BEAD APPLICATION
|
|
|
| Possible Jamb Thickness Chart |
|
| Product Code: |
wallchart |
| Lead Time: |
|

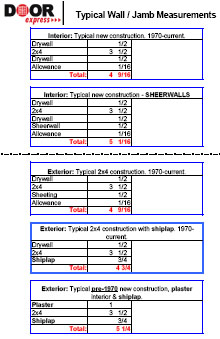

Page 1 - Possible wall thickness breakdown.
Click to enlarge.
|
|
|
| Possible Jamb Thickness cont |
|
| Product Code: |
wallchart |
| Lead Time: |
|
Page 2 - Possible wall thickness breakdown.
Click to enlarge
|
|
|
| Jamb Detail |
|
| Product Code: |
drawing |
| Lead Time: |
|
Click to enlarge.
|
|
